A Guide to CNC Spindles and Their Applications

The spindle is the heart of any CNC machine, holding, rotating, and driving the cutting tool. It directly affects the machine’s precision, speed, and performance. Understanding the different types of CNC spindles is essential for anyone in manufacturing, from hobbyists to industrial operators. Choosing the right spindle impacts product quality and process efficiency.

This guide explores the main types of CNC spindles, their features, and ideal uses. We’ll cover belt-driven, direct-drive, and motorized spindles to help you select the best option for your machining needs.

Belt-Driven Spindles

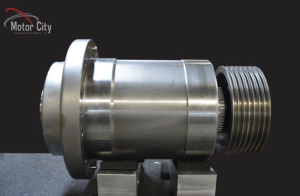

Belt-driven spindles use a pulley and belt system to transfer motor power to the spindle shaft.

Features and Advantages

• Cost-Effective: Affordable and easy to maintain.
• Reduced Heat Transfer: The separate motor minimizes heat affecting accuracy.
• High Torque at Low RPM: Ideal for heavy cutting.

Disadvantages

• Vibration and Noise: The belt system may introduce vibration and is noisier.
• Lower Speeds: Typically limited RPM compared to other spindle types.
• Regular Maintenance: Belts can wear out and need replacing.

Common Applications

• General Metalworking: Effective for steel, aluminum, and other metals.
• Woodworking: Handles large cutters and deep cuts in materials like MDF.
• Prototyping: Affordable for R&D and educational use.

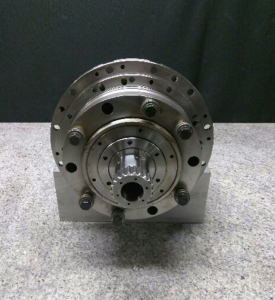

Direct-Drive Spindles

Direct-drive spindles connect the motor shaft directly to the spindle shaft, eliminating belts and pulleys.

Features and Advantages

• High Precision: Reduces vibration for better accuracy and surface finish.
• Higher Speeds: Achieves faster RPMs for smaller tools.
• Quick Speed Changes: Ideal for frequent tool changes.

Disadvantages

• Lower Torque at Low RPM: Less effective for heavy cutting.
• Heat Transfer: Motor heat can affect accuracy; liquid cooling is often required.
• Higher Cost: More expensive than belt-driven spindles.

Common Applications

• Die and Mold Making: High precision and excellent finishes.
• Aerospace Machining: High-speed cutting for aluminum and composites.
• Precision Machining: Tight tolerances for medical and electronics industries.

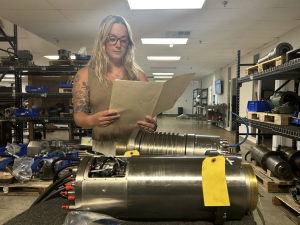

Motorized Spindles

Motorized spindles integrate the motor into the spindle housing, creating a compact, efficient design.

Features and Advantages

• Superior Performance: High speeds, precision, and minimal vibration.
• Space-Saving Design: Compact for multi-axis machines.
• Extremely High RPM: Ideal for high-speed machining.

Disadvantages

• Very High Cost: The most expensive spindle type.
• Complex Repairs: Repairs often require replacing the entire unit.
• Heat Management: Requires advanced cooling systems to maintain precision.

Common Applications

• High-Speed Machining: Used in aerospace and automotive industries.
• Precision Grinding: Delivers smooth surfaces and tight tolerances.
• Medical Manufacturing: Creates intricate components like implants.
• Engraving: High RPM supports fine detailed work.

Leading Spindle OEMs

Choosing a reliable spindle OEM ensures quality and performance. Top manufacturers include:

• Fischer Precise: High precision for aerospace and medical industries.
• GMN: Durable, high-performance spindles for milling and grinding.
• IBAG: Specializes in high-speed motor spindles for automotive and electronics.
• Kessler: Trusted for heavy-duty and multi-axis applications.
• Makino: Known for endurance and adaptability, especially in mold-making.

How to Select the Right Spindle

Choosing the right spindle depends on material, precision needs, tooling, and budget. Key factors include:

• Material: Hard metals need high torque; soft materials and light alloys favor high-speed spindles.
• Precision: For tight tolerances, go with direct-drive or motorized spindles.
• Tooling: Large tools need high torque; small tools need high RPM.
• Budget: Belt-driven spindles are cost-effective; motorized ones offer top performance but are expensive.
