Advantages of Converting CAT Spindle Tapers to BIG Plus Spindles

Machine shops running CAT taper spindles often face issues like tool pull-out, reduced accuracy, and frequent spindle repairs. The solution? Converting CNC machines from CAT taper to BIG Plus spindle systems.

This upgrade offers game-changing benefits, improving machining performance while reducing downtime. Learn how BIG Plus technology works, the conversion process, and how it can boost your operations.

The Problem with CAT Taper

CAT (Caterpillar) taper spindles have been a staple in manufacturing for decades, but their design has clear limitations as machining demands grow.

Common Issues

• Tool Pull-Out: Tools can shift or detach during heavy cuts when forces exceed the drawbar’s capacity, causing scrap, damage, and safety risks.
• Reduced Rigidity: Single-point contact between the tool holder and spindle allows vibration and movement, leading to poor surface finishes and accuracy issues.
• Frequent Repairs: The stress on the drawbar causes wear, leading to costly maintenance and downtime.

Why BIG Plus Technology Wins

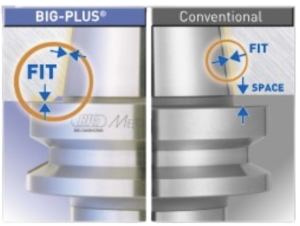

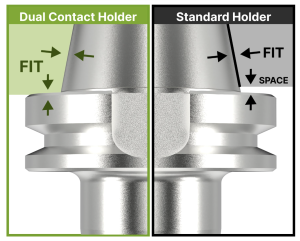

BIG Plus spindle technology eliminates these issues with a dual-contact design, enabling contact at both the taper and spindle face.

Better Tool Retention

Dual-contact distributes forces effectively, reducing drawbar stress and virtually eliminating tool pull-out. This allows for higher feed rates and deeper cuts without compromising tool security.

Superior Rigidity and Accuracy

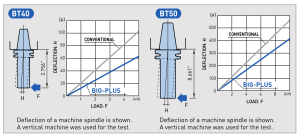

BIG Plus locks tools in place with precision, reducing vibration and micro-movements. Shops report 20-30% accuracy improvements, tighter tolerances, and better surface finishes.

The Conversion Process

Switching from CAT taper to BIG Plus involves modifying the spindle, assessing tooling, and validating the system.

Spindle Modifications

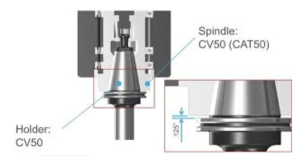

Technicians machine the spindle face to create a secondary contact point. Most CAT taper spindles can accommodate this upgrade with proper equipment and expertise.

Tooling Compatibility

Existing CAT tooling works with BIG Plus spindles, but shops see the best results with dedicated BIG Plus tools. A gradual upgrade strategy minimizes costs while improving results.

Performance Gains

BIG Plus spindles deliver measurable benefits:

• Fewer Repairs: Reduced drawbar stress cuts spindle repair needs by 40-60%.
• Higher Productivity: Aggressive machining parameters boost output by 15-25%.
• Better Surface Finishes: Less vibration means smoother cuts, reducing secondary operations and improving part quality.

Cost vs. Benefits

While BIG Plus conversion requires upfront investment, the long-term savings and performance improvements often outweigh the costs.

Reduced Costs

Avoided spindle repairs, lower downtime, and increased reliability deliver significant savings. Many shops recoup conversion costs after just one avoided repair.

Increased Profitability

Higher throughput, better quality, and reduced scrap rates directly improve your bottom line.

Best Practices for Success

To ensure a smooth conversion:

• Choose Experts: Work with experienced technicians who can maintain spindle geometry and quality.
• Schedule Wisely: Plan conversions during maintenance windows to avoid production delays.
• Train Operators: Teach staff how to optimize BIG Plus performance for maximum benefits.

Elevate Your Machining Operations

BIG Plus spindle conversion is a proven way to reduce costs, boost productivity, and improve part quality. Proper planning and expert execution ensure you get the most from your investment.

Contact qualified specialists to evaluate your machines for BIG Plus conversion and unlock years of improved machining performance.

I’m unable to generate or display images directly, but I can provide you with a description or example of how to create the graph content.

You can create a graph that shows the cost savings using BIG Plus tool holders ver

sus CAT tool holders over time. The graph should have the following components:

• X-Axis: Represents time in months or years.
• Y-Axis: Represents cumulative savings in dollars.
• Two Plot Lines:
• • One for BIG Plus tool holders showing a steady decrease in operational costs over time.
  • One for CAT tool holders showing relatively higher operational costs with minimal savings.
