The Spindle Rebuild Process: Step-by-Step
When your CNC spindle shows signs of wear—vibration, reduced accuracy, or unusual noise—you face a key decision: replace it or rebuild it? For many, rebuilding offers a cost-effective way to restore like-new performance while saving money compared to new replacement costs.
But what happens during a spindle rebuild? Here’s a look at the precise process that transforms a worn spindle into a high-performance component ready for years of reliable use and why you should trust Motor City Spindle Repair with your rebuilds.
Why Spindle Rebuilds Matter
Spindles are the heart of machining operations, holding and rotating cutting tools at precise speeds. Over time, bearings wear, seals fail, and components lose tight tolerances. A proper rebuild addresses these issues—and can even improve on the original performance.
For instance, a job shop running 16 hours daily notices spindle runout increasing from 0.0001″ to 0.0005″. While still functional, this affects surface finish and tool life. A rebuild restores runout to 0.00005″, outperforming the original factory specs.
So, let's take a look at what happens when a broken spindle arrives at
the Motor City Spindle Repair facility.
Step 1: Initial Assessment

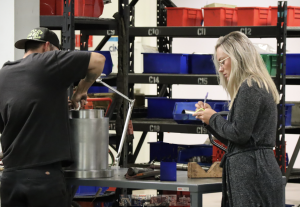

Every rebuild starts with thorough documentation. MCSR technicians photograph the spindle immediately upon arrival, record serial numbers, and note visible damage. Critical measurements like runout and axial play are taken, and electrical components are tested to identify any non-mechanical issues.
Why this matters: Detailed documentation prevents reassembly errors and reveals patterns of wear that may indicate machine tool issues to the customer.
Step 2: Teardown
Teardown requires specialized tools and knowledge. Our technicians disassemble the spindle, carefully documenting the position of components like bearings, shims, and spacers, which are essential for preload settings. Int
ernal damage, such as worn bearings or corrosion, often becomes apparent during this step.
Example: A spindle with premature bearing failure was found to have incorrect shim placement from a previous repair. This caused bearings designed to last 10,000 hours to fail after just 2,000 hours.
Step 3: Component Inspection
Every component undergoes rigorous inspection. Bearings are examined for wear, shafts are checked for straightness, and housings are measured for precision. Even microscopic damage can signal issues that might lead to future failure.
Insight: Many spindle failures stem from contamination that’s invisible to the naked eye. Professional inspection catches these issues and prevents recurring problems.
Step 4: Precision Machining

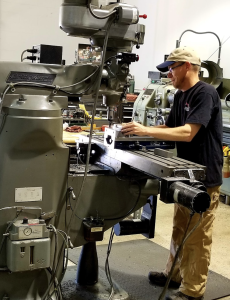

This step separates professional rebuilds from basic repairs. Worn bearing seats, damaged seal surfaces, and out-of-tolerance components are restored with precision grinding. Tolerances as tight as 0.0001″ and fine surface finishes ensure optimal performance.
Note: Modern rebuilds often exceed original specs, thanks to advanced machining and better understanding of bearing requirements.
Step 5: Dynamic Balancing
Proper balancing ensures smooth, vibration-free operation. Our technicians use precision equipment to detect and correct imbalances. For high-speed spindles, tolerances are extremely tight—often less than 0.1 gram-millimeters.
Impact: Balancing reduces vibration, extends bearing life, improves surface finish, and allows higher operating speeds.
Step 6: Reassembly
Reassembly requires attention to preload settings, torque specifications, and cleanliness. Bearings are installed with exact preload, and seals are carefully fitted to prevent leaks or contamination. Modern materials often improve on the original design for better durability.
Step 7: Testing
Testing begins with runout measurements, ensuring precision at the spindle nose. Dynamic testing follows, with accelerometers monitoring vibration and temperature at various speeds. Proper thermal management and balancing ensure stable, long-lasting performance.
We have a saying here at Motor City: “If we can’t test it, we won’t rebuild it”!
Quality assurance: Comprehensive test reports validate the rebuild’s success and serve as a reference for future maintenance.
The Result: Better Than New!
A properly rebuilt spindle often outperforms the original. Advanced techniques, improved balancing, and modern materials restore performance while extending reliability. Our experienced technicians allow your spindle to be better-than-new, and we back all our repairs with a ONE YEAR IN-SERVICE WARRANTY.
Why Choose Motor City Spindle Repair?
When it comes to spindle rebuilds, expertise and reliability make all the difference. Motor City Spindle Repair stands out with a team of seasoned professionals dedicated solely to spindle repair and maintenance. We leverage advanced diagnostic and precision machining technology to ensure every rebuild meets or exceeds OEM standards.
Our streamlined processes allow for some of the fastest turnaround times in the industry, minimizing your downtime and keeping your operations on track. We are committed to transparent communication and personalized service, working closely with each customer to address their unique needs.
Customer satisfaction is at the core of everything we do. From detailed inspections and failure analysis reports to comprehensive final testing, you can count on us for uncompromising quality, innovative solutions, and support that doesn’t end when your spindle leaves our facility. Trust us to restore your spindle’s performance—so you can focus on what you do best.
