Top CNC Spindles in Automotive Manufacturing
In automotive manufacturing, precision and power depend on a critical component: the CNC spindle. This rotating core of a CNC machine holds and drives the cutting tool. In an industry where millimeter-level accuracy matters, spindle performance is key. From shaping engine blocks to finishing fine details, the right spindle boosts efficiency, accuracy, and innovation on the production floor.
Understanding CNC spindle types and their uses is essential for manufacturers looking to optimize operations. This post explores the most popular CNC spindles in the automotive sector, covering their features, top brands, and applications. It also explains how choosing the right spindle can dramatically improve production quality and speed.
The Workhorses: High-Torque Spindles
Machining tough materials like cast iron for engine blocks or forged steel for crankshafts requires immense torque. High-torque spindles deliver the power needed for smooth, precise cutting at low speeds.
Key Features & Benefits:
- High Torque at Low RPM: Ideal for deep cuts and large tools.
- Heavy-Duty Build: Robust bearings and rigid shafts handle the forces of heavy milling and drilling.
- Efficient Material Removal: Supports aggressive cutting for faster machining of large parts.
Top Brands and Applications:

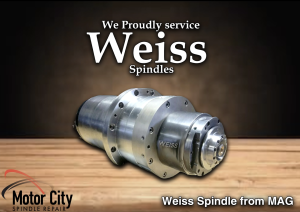

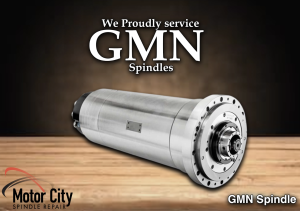

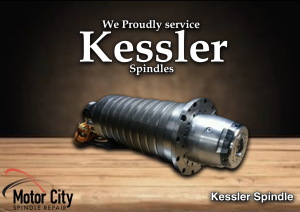

Weiss, Kessler, and GMN dominate high-torque spindles. Common uses include:
- Engine Blocks: Deck milling, cylinder boring, and drilling oil passages.
- Chassis Components: Machining suspension knuckles, control arms, and subframes.
- Transmission Housings: Shaping cast aluminum or magnesium cases.
The Sprinters: High-Speed Spindles
While torque is crucial for roughing, speed is essential for finishing. High-speed spindles, reaching over 20,000 RPM, are perfect for smooth finishes and detailed parts made from softer materials like aluminum.
Key Features & Benefits:
- Smooth Finishes: High-speed cutting reduces the need for polishing.
- Faster Cycle Times: Speeds up finishing and detail work.
- Great for Small Tools: Excels with small-diameter tools for intricate details.
Top Brands and Applications:

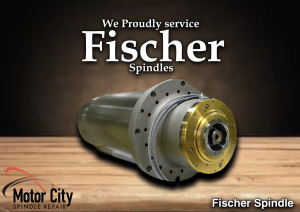

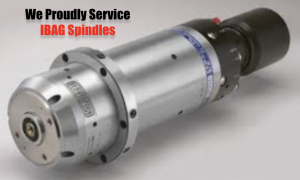

IBAG, Step-Tec, and Fischer lead in high-speed spindles. They’re used for:
- Plastic Molds: Polished molds for dashboards, trim, and lenses.
- Aluminum Parts: Smoothing surfaces on cylinder heads, pistons, and manifolds.
- Prototyping: Quickly machining detailed parts for show cars or tuning.
The All-Rounders: Motor Spindles
Motor spindles integrate an electric motor directly into the spindle housing, providing a balance of speed, torque, and precision. Their versatility makes them ideal for various automotive applications.
Key Features & Benefits:
- Minimal Vibration: Direct-drive systems improve accuracy and finish.
- Wide Range: Delivers torque at low speeds and high RPM for finishing.
- Compact Design: Fits into complex 5-axis machining centers.
Top Brands and Applications:

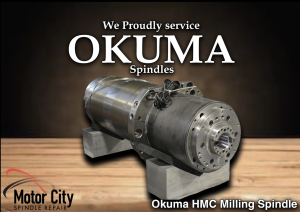

Siemens, Fanuc, and Okuma lead in motor spindles. They’re used for:
- 5-Axis Machining: Ideal for intricate parts like turbine wheels or suspension components.
- Flexible Production Lines: Handles roughing and finishing in one machine.
- High-Volume Production: Reliable for 24/7 operations in automotive manufacturing.
Choosing the Right Spindle
Selecting the right spindle—whether high-torque, high-speed, or motor—directly impacts precision, efficiency, and profitability. Machining engine blocks requires different capabilities than creating molds for interior parts. Choosing the right CNC spindle ensures maximum productivity, less waste, and higher-quality vehicles.
Investing in the right spindle technology helps manufacturers meet exact specifications, reduce tool wear, and maintain efficiency on the production floor. In the competitive automotive industry, the spindle isn’t just a machine part—it drives success.
Applying CNC Spindle Insights to Leading Machine Tool Brands
The strategies and spindle recommendations discussed in this blog are relevant across the top machine tool manufacturers used in the automotive industry. Here are practical examples showing how these insights apply to some of the most prominent CNC machine brands:
|
Machine Tool Make |
Application of Spindle Insights |
Example Models / Applications |
|---|---|---|
|
Mazak |
High-torque spindles are used in Mazak’s HCN Series for tough engine blocks; high-speed options in Variaxis for mold work. |
HCN 6800 for engine blocks; Variaxis i-700 for interior trim molds |
|
DMG MORI |
Motor spindles integrated in DMU Series support 5-axis work for complex suspension or turbo components. |
DMU 50 3rd Gen for turbo wheel machining; DMC 80 FD duoBLOCK for chassis |
|
Okuma |
Okuma’s built-in motor spindles combine speed and torque on GENOS and MB-V Series for flexible production. |
GENOS M560-V for cylinder heads; MB-80V for aluminum transmission housings |
|
Makino |
High-speed spindles in D-Series excel at aluminum finishing; a61nx Series for heavy iron work with high-torque. |
D500 for light alloy trimming; a61nx for engine block machining |
|
Haas |
VF Series supports both spindle types for a mix of roughing steel and finishing aluminum in auto shops. |
VF-4 for block work; VF-2SS for prototyping custom parts |
|
Doosan (DN Solutions) |
PUMA Series leverages robust spindles for crankshafts; DNM models for high-speed detail on accessory parts. |
PUMA 700 for crankshaft turning; DNM 5700S for small aluminum brackets |
|
Hermle |
Compact C Series with direct-drive spindles enables intricate 5-axis work on gear housings or manifolds. |
C 400 for precision manifolds; C 650 for chassis brackets |
|
FANUC |
FANUC Robodrill’s high-speed spindles specialize in detailed, mass-produced small automotive components. |
α-D21SiB5 for high-volume, small part production |
|
Hurco |
VMX Series offers both high-torque and high-speed options for flexible manufacturing solutions. |
VMX42i for powertrain castings; VMX30Ui for gear and pulley prototyping |
|
Hyundai Wia |
Versatile turning centers with robust spindles handle both structural and detailed components. |
XF6300 for molds; KH80G for engine block and chassis parts |
|
Chiron |
FZ 12 and FZ 18 models use high-speed spindles for rapid machining of aluminum engine or body parts. |
FZ 18 S five axis for door panel parts |
|
Kitamura |
Mycenter family leverages precision high-speed spindles for prototyping and production of custom assemblies. |
Mycenter-HX800iG for subframes; Mycenter-3X for interior components |
These examples highlight how the principles discussed—choosing between high-torque, high-speed, and integrated motor spindles—apply directly to optimizing performance, precision, and flexibility with whichever leading machine tool platform your automotive operation uses. This approach ensures each machine is equipped to deliver the best results for specific parts, materials, and production goals.
