Why Air Gauging is Critical for CNC Spindle Repair Success
CNC spindles operate at tremendous speeds while maintaining tolerances measured in microns. When these precision components begin showing signs of wear, the repair process demands measurement accuracy that traditional gauging methods simply cannot provide. Air gauging technology has emerged as the definitive solution for ensuring spindle components meet the exacting specifications required for optimal performance.
This comprehensive guide examines why air gauging has become essential for CNC spindle repair, explores the technology’s core principles, and details the specific advantages it offers over conventional measurement approaches. Understanding these principles will help you make informed decisions about your spindle repair processes and achieve the precision results your operations demand.
Understanding Air Gauging Technology
Air gauging operates on an elegant principle: compressed air flows through specially designed measuring heads at rates that vary based on the clearance between the gauge and the workpiece surface. This non-contact measurement system delivers dimensional accuracy with extreme precision, making it ideal for the demanding requirements of CNC spindle repair.
The measurement process begins with clean, regulated compressed air flowing through jets positioned around the measurement head. As the clearance between the gauge and the measured surface changes, the air flow rate changes proportionally. Calibrated pressure or flow sensors convert this variation into precise dimensional readings displayed in real-time.
Modern air gauging systems consist of three primary components: an air supply unit providing clean, regulated compressed air; measuring heads designed for specific applications; and electronic readouts displaying measurements instantly. These systems routinely achieve accuracy levels of ±0.00005 inches (±1.25 microns), meeting the tight tolerances essential for successful spindle repair.
The technology’s non-contact nature eliminates many variables that affect traditional measurement methods. Surface texture, operator technique, and probe pressure no longer influence readings, resulting in consistently reliable measurements across different operators and conditions.
Air Gauging’s Role Throughout the Spindle Repair Process
Successful CNC spindle repair requires precise measurement at multiple critical stages. Air gauging provides the accuracy and reliability needed to ensure each step meets exacting specifications.
Initial Inspection and Assessment
During the initial inspection phase, technicians use air gauges to evaluate wear in bearing journals, spindle bores, and other critical surfaces. This comprehensive assessment determines whether components can be salvaged through reconditioning or require complete replacement. The precision of air gauging ensures these crucial decisions are based on accurate dimensional data rather than subjective visual inspection.
The non-contact measurement capability proves particularly valuable during initial inspection. Worn spindle components often have delicate surfaces that could be damaged by contact-based measurement methods. Air gauging allows thorough evaluation without risk of further damage.
Machining and Grinding Operations
Throughout the machining and grinding processes used to restore spindle components, air gauging provides real-time feedback that enables technicians to achieve exact dimensions specified in original equipment manufacturer specifications. This continuous monitoring capability allows operators to make immediate adjustments, preventing overshooting of tolerances and reducing scrap rates.
The speed of air gauging measurements makes this real-time monitoring practical. Where traditional measurement methods might require stopping machining operations for periodic checks, air gauging can provide continuous dimensional feedback without interrupting the process.
Quality Control and Final Verification
Before final assembly, air gauging verifies that all components meet dimensional requirements. This verification step prevents costly rework and ensures the rebuilt spindle will perform to specification once returned to service. The comprehensive nature of air gauging allows inspection of multiple geometric features quickly and accurately.
Quality control documentation benefits significantly from air gauging’s digital capabilities. Measurement data can be automatically recorded and integrated with quality management systems, providing complete traceability and supporting compliance requirements.
Key Advantages Over Traditional Measurement Methods
Air gauging offers several distinct advantages that make it particularly valuable for CNC spindle repair applications. These benefits explain why leading repair facilities have adopted this technology as their primary measurement system.
Exceptional Accuracy and Repeatability
The repeatability of air gauging measurements ensures that different operators will obtain identical results when measuring the same feature. This consistency is essential for maintaining quality standards across shifts and different technicians.
Real-Time Monitoring Capabilities
Unlike traditional gauges that provide single-point measurements, air gauging systems can monitor dimensions continuously during machining operations. This real-time feedback allows operators to make immediate adjustments, reducing scrap rates and improving overall efficiency.
For CNC spindle repair, this means achieving target dimensions without overshooting tolerances. The ability to monitor dimensions continuously during grinding operations, for example, allows operators to approach final dimensions gradually and stop precisely at the target measurement.
Significant Time Savings
Air gauging dramatically reduces the time required for dimensional inspection. Measurements that might take several minutes with traditional methods can be completed in seconds with air gauging. This speed improvement is particularly valuable in production environments where quick turnaround times are essential.
The time savings extend beyond individual measurements. Setup time for air gauging systems is typically much faster than for traditional measurement methods, and the ability to measure multiple features simultaneously further reduces overall inspection time.
Versatility Across Different Geometries
Air gauging systems can be configured to measure various geometric features including internal diameters, external diameters, taper angles, and surface straightness. This versatility makes air gauging particularly valuable for spindle repair applications where multiple different measurements are required on each component.
Custom measuring heads can be designed for specific applications, allowing air gauging to accommodate unique spindle geometries or specialized measurement requirements. This flexibility ensures that air gauging can meet the diverse measurement needs encountered in spindle repair.
Specific CNC Spindle Repair Applications
The precision requirements of CNC spindle repair make air gauging particularly valuable for several specific applications. Understanding these applications illustrates why this technology has become indispensable in modern repair facilities.
Bearing Journal Measurement
Spindle bearing journals must be maintained within extremely tight tolerances to ensure proper bearing fit and spindle performance. Air gauging allows technicians to measure these journals with the accuracy needed to determine appropriate bearing selection and verify final dimensions after any reconditioning work.
The circular nature of bearing journals makes them ideal for air gauging measurement. The measuring head can be positioned to take readings at multiple points around the circumference simultaneously, providing comprehensive information about journal condition and geometry.
Spindle Bore Inspection
The internal bore of a spindle housing requires precise measurement to ensure proper bearing installation and alignment. Air gauging heads designed for internal measurement can quickly assess bore condition and verify dimensions after any boring or honing operations.
Internal measurement represents one of air gauging’s strongest applications. Traditional methods for measuring internal diameters are often cumbersome and may not provide the accuracy needed for spindle repair. Air gauging offers both the precision and convenience required for these critical measurements.
Taper Accuracy Verification

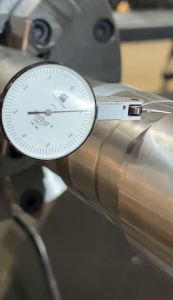

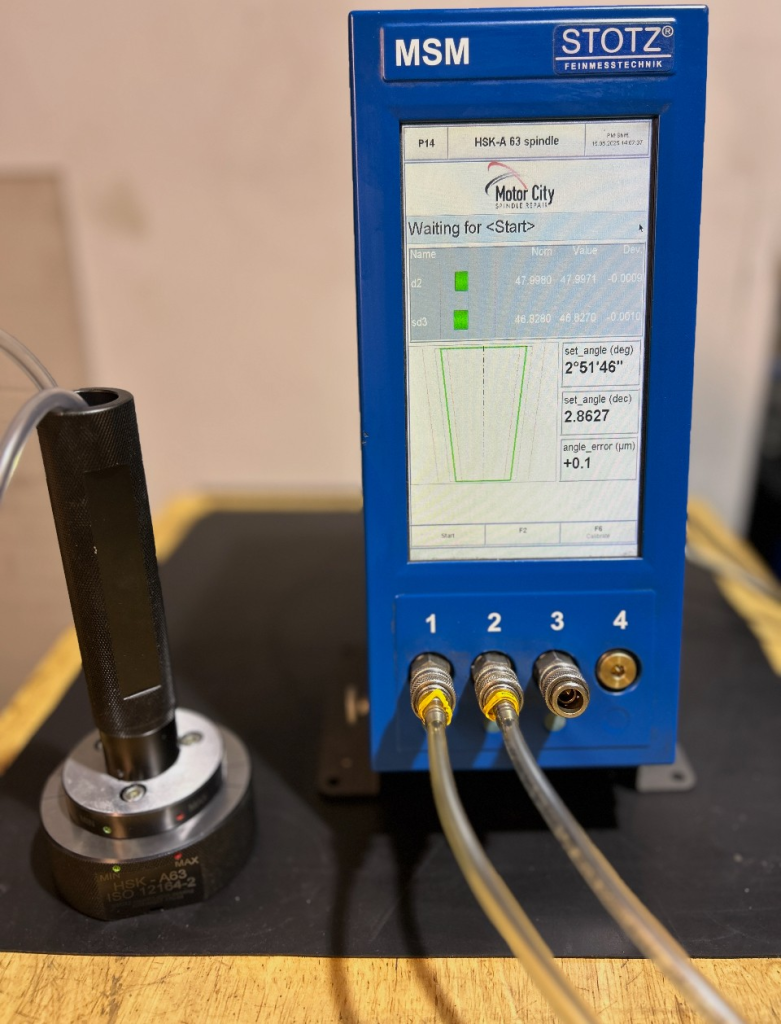

Many CNC spindles feature precision tapers for tool holding systems. Air gauging can verify both the angle and diameter of these tapers, ensuring they meet the specifications required for proper tool retention and runout performance.
Taper measurement with air gauging can be accomplished using specialized measuring heads that contact the taper surface at multiple points. This approach provides comprehensive information about taper geometry and helps ensure proper tool holder interface.
Surface Finish Assessment
While not a direct dimensional measurement, air gauging can provide information about surface condition by detecting variations in air flow caused by surface irregularities. This capability helps technicians identify areas that may require additional finishing operations.
The sensitivity of air gauging to surface variations makes it useful for detecting problems that might not be apparent through visual inspection or traditional measurement methods. This capability adds value to the overall inspection process.
Integration with Modern Manufacturing Systems
Modern manufacturing environments increasingly rely on automated systems and data integration. Air gauging technology has evolved to support these requirements, offering features that enhance its value in CNC spindle repair applications.
Many current air gauging systems include digital interfaces that can communicate with shop floor data collection systems. This connectivity allows measurement data to be automatically recorded and integrated with quality management systems, providing complete traceability and supporting compliance requirements.
Statistical process control capabilities built into modern air gauging systems help identify trends and potential problems before they affect quality. This proactive approach to quality management is particularly valuable in spindle repair where consistency is essential.
Making the Investment Decision
The decision to implement air gauging for CNC spindle repair involves evaluating both the immediate benefits and long-term value of the technology. While the initial investment may be significant, the accuracy, speed, and consistency benefits typically justify the cost for serious repair operations.
Consider the cost of rework, scrap, and customer dissatisfaction that can result from inadequate measurement capabilities. Air gauging helps eliminate these costs while improving overall repair quality and customer satisfaction.
The versatility of air gauging systems means that a single investment can support multiple measurement applications. This flexibility provides additional value and helps justify the initial cost.
Achieving Precision Excellence in Spindle Repair
As manufacturing tolerances continue to tighten and customer expectations for quality increase, air gauging provides the measurement capability needed to meet these challenges. Repair facilities that invest in this technology position themselves to deliver superior results and maintain competitive advantages in an increasingly demanding market.
The precision of air gauging ensures that every spindle repair meets the exacting standards required for optimal CNC performance. This commitment to measurement excellence translates directly into improved customer satisfaction and business success.
