How Upgrading Bearings and Components Can Extend Spindle Life

In manufacturing, the spindles performance directly impacts your production quality, efficiency, and overall company. When a spindle fails, it brings operations to a halt, leading to costly downtime and lost revenue. While standard repairs can get you back up and running, there’s a more strategic approach: upgrading key components during the repair process. By investing in superior parts like angular contact bearings, you can significantly extend your spindle’s life and enhance its performance.

This post will explore how upgrading bearings and other components can protect your investment. We will cover the critical role these parts play, the specific advantages of angular contact bearings, and how a specialized repair service like Motor City Spindle Repair can future-proof your machinery.

Why Settle for Standard When You Can Upgrade?

When a spindle requires repair, simply replacing worn-out parts with standard, like-for-like components might seem like the most straightforward solution. However, this approach often overlooks an opportunity to address the root cause of the failure and improve the spindle’s overall resilience. Manufacturing demands evolve, and the components that were originally installed may no longer be the best choice for your current applications.

Upgrading components during a rebuild is a proactive strategy. It allows you to integrate newer, more advanced technology into your existing equipment. This not
only restores the spindle to its original operating condition but elevates its capabilities, preparing it for more demanding tasks and reducing the likelihood of future failures.

Key benefits of upgrading include:

• Increased Durability: Superior materials and designs can better withstand heat, friction, and high loads.
• Improved Performance: Upgrades can lead to higher rotational speeds, greater precision, and better surface finishes.
• Extended Operational Life: A more robust spindle means less wear and tear, translating to a longer lifespan before the next service is needed.

The Power of Angular Contact Bearings

At the core of any high-performance spindle are its bearings. They bear the load, manage friction, and enable the high-speed rotation necessary for precision machining. Among the various types of bearings available, angular contact bearings stand out as the superior choice for most high-speed spindle applications.

Unlike standard radial bearings, which are designed primarily for loads perpendicular to the shaft, angular contact bearings are engineered to handle both radial and axial (thrust) loads simultaneously. Their unique raceway design allows them to manage the complex forces generated during cutting, drilling, and milling operations.

How Do They Work?

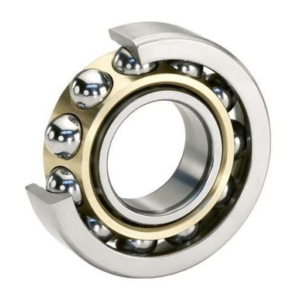

An angular contact bearing has raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. This “contact angle” is what gives them their unique properties. When mounted and preloaded correctly, they provide an extremely rigid and stable support system for the spindle shaft.

The Advantages of Upgrading to Angular Contact Bearings

1. Higher Speed Capabilities: The design of angular contact bearings minimizes friction and heat generation, allowing spindles to operate reliably at much higher RPMs. This is crucial for applications requiring high-speed machining.
2. Enhanced Rigidity and Precision: By effectively managing both axial and radial loads, these bearings provide exceptional stiffness. This rigidity minimizes shaft deflection under load, resulting in greater cutting accuracy and improved surface finishes on finished parts.
3. Superior Load Distribution: They are often installed in pairs or sets (duplex, triplex, or quadplex) to handle heavy thrust loads in one or both directions. This configuration ensures that forces are distributed evenly, preventing premature wear and failure.
4. Longer Service Life: Made from high-purity steel or advanced ceramics, modern angular contact bearings offer incredible durability. When properly lubricated and sealed, they can significantly outlast their conventional counterparts, extending the mean time between failures (MTBF).

Beyond Bearings: Other Critical Component Upgrades

While bearings are a primary focus, a comprehensive spindle upgrade considers other components that contribute to performance and longevity.

• Seals and Labyrinths: Upgrading to improved sealing systems can prevent contamination from coolant, dust, and debris—a leading cause of bearing failure.
• Drawbar Components: Enhancing the drawbar assembly with stronger springs or improved gripper mechanisms ensures consistent tool clamping force, which is vital for both safety and machining accuracy.
• Sensors and Monitoring: Integrating vibration or temperature sensors can provide real-time data on the spindle’s health, allowing for predictive maintenance and preventing catastrophic failures.

Motor City Spindle Repair: Your Partner in Performance Upgrades

Understanding the benefits of an upgrade is one thing; implementing it correctly is another. Spindle repair is a highly technical field that demands expertise and precision. That’s where Motor City Spindle Repair excels. We don’t just fix spindles—we re-engineer them for superior performance and a longer operational life.

Our specialization lies in comprehensive spindle repair and upgrade services, with a particular focus on the integration of high-performance angular contact bearings. When you send your spindle to us, our process goes beyond a simple replacement of parts.

Our expert technicians perform a detailed failure analysis to determine why the spindle failed in the first place. This diagnostic step allows us to recommend targeted upgrades that address underlying issues. We often find that upgrading from standard bearings to a precisely configured set of angular contact bearings is the most effective way to enhance the spindle’s durability and capabilities.

By partnering with Motor City Spindle Repair, you benefit from:

• Expert Engineering: Our team has deep knowledge of spindle design and application requirements. We select and install the optimal bearing configuration for your specific needs.
• State-of-the-Art Facility: We balance and test every rebuilt spindle in a clean, climate-controlled environment to ensure it meets or exceeds OEM specifications.
• Reduced Downtime: An upgraded, more reliable spindle means fewer interruptions to your production schedule and a lower total cost of ownership over time.
• Increased Productivity: With a spindle capable of higher speeds and greater precision, you can improve cycle times and the quality of your finished products.

Bearings In Stockand Ready to Ship

In addition to our comprehensive repair and upgrade services, Motor City Spindle Repair also offers a wide selection of angular contact bearings for sale—always in stock and ready to ship. We understand that downtime can be costly, which is why we

prioritize quick availability and reliable delivery for all our bearing inventory. Whether you need a single replacement or bearings for a full rebuild, you can count on us t

o provide high-quality components with minimal lead time. Our in-stock bearings ensure that your spindle repair or upgrade project moves forward without delay, helping you keep your operations running smoothly

.

Conclusion: Invest in Longevity

Your machine tool spindle is too critical to leave its performance to chance. The next time a spindle needs service, consider it an opportunity not just to repair, but to improve. Upgrading to premium components like angular contact bearings is a strategic investment that pays dividends through extended spindle life, enhanced machine performance, and greater operational reliability.
